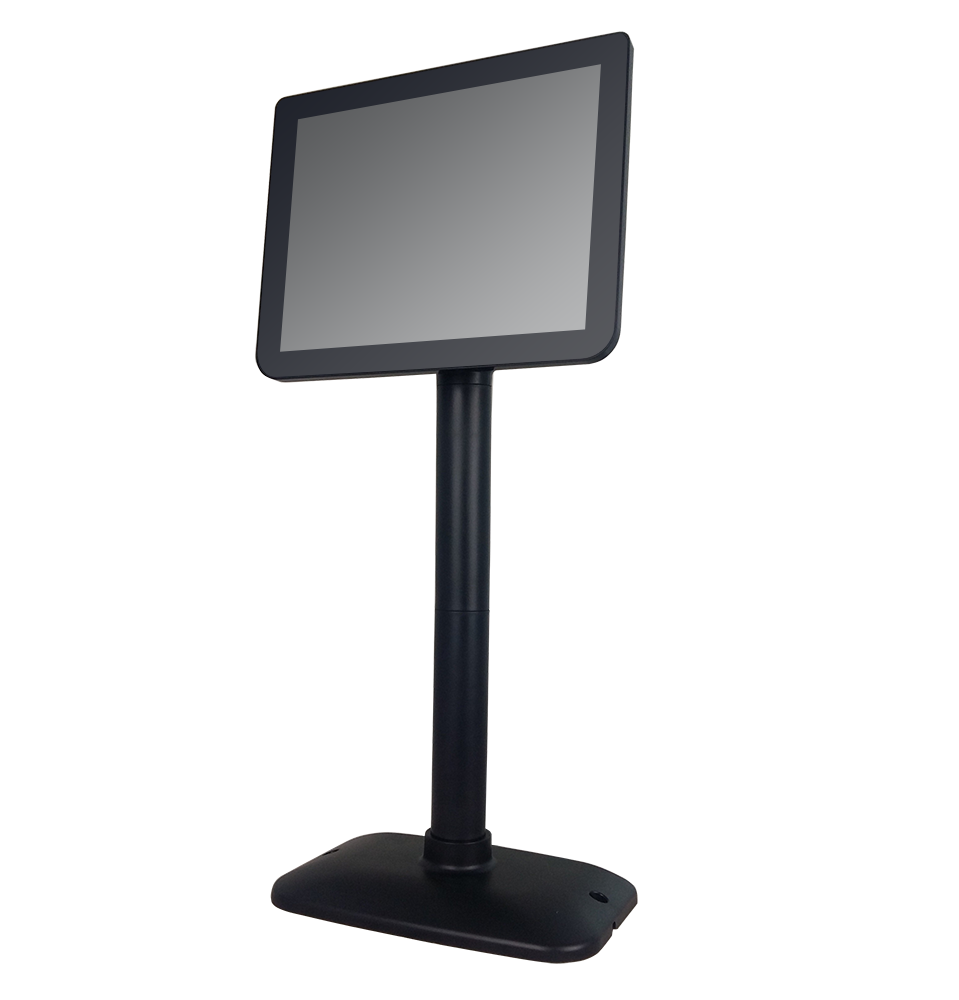

• LCD Display
• Bezel free stylish outlook
• High brightness
• Optional stand-alone type / second display
| Display Type | 9.7" IPS TFT LCD | |
| Back-light | WLED | |
| White luminance (Center) | 400 cd/m² | |
| Interface | USB/VGA | |
| Command Set | Use as Second Monitors | |
| Character Type | Graphic Mode | |
| Touch Option | N/A | |
| Chassis Color | Black (White for Option) | |
| Power Supply | DC 12V 1.5A | |
| Power Consumption | 10W(max) | |
| Operation Temperature | 0 to 40 °C | |
| Storage Temperature | 0 to 40°C | |
| Operation Humidity | 20 - 80% RH | |
| Storage Humidity | 20 - 80% RH | |
| MTBF | 10K Hours (min) | |
| Certification | CE/FCC/ROHS/3C | |
| Head (W x D x H) | 235 W × 185 D × 42 H (mm) | |
| Support (H x Ø) | Long: 280 H x 35 Ø (mm); Short: 140 H x 35 Ø (mm) |
|
| Base (W x D x H) | 211 W × 102 D × 21 H (mm) | |
| Weight | 1KGs | |
| Rotation Angle | Vertical 0-90 | |
| Horizontal 0-350 |
