-> EC-VP-1100 Introduction Video
• All-in-one FANLESS POS System
• 15" Bezel free with Capacitive touch
• Flexible architectures for peripheral

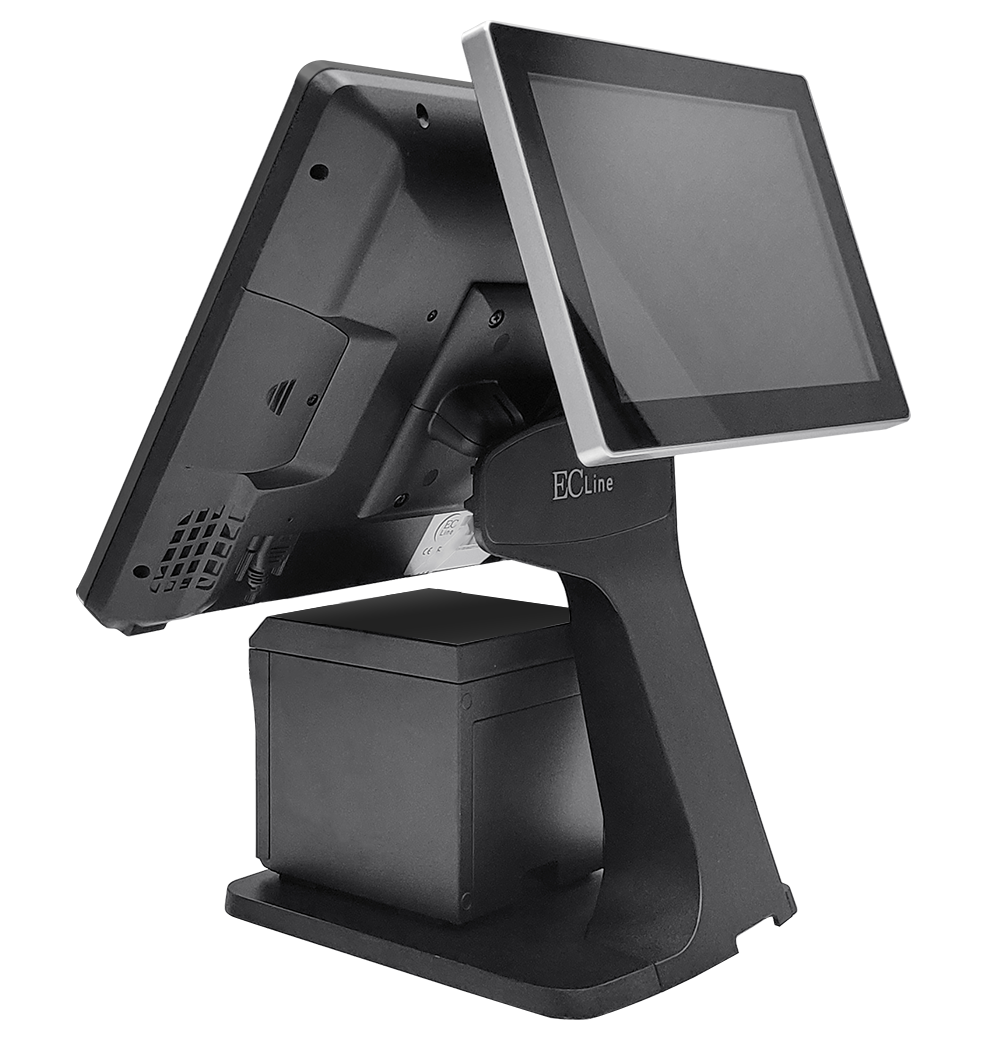

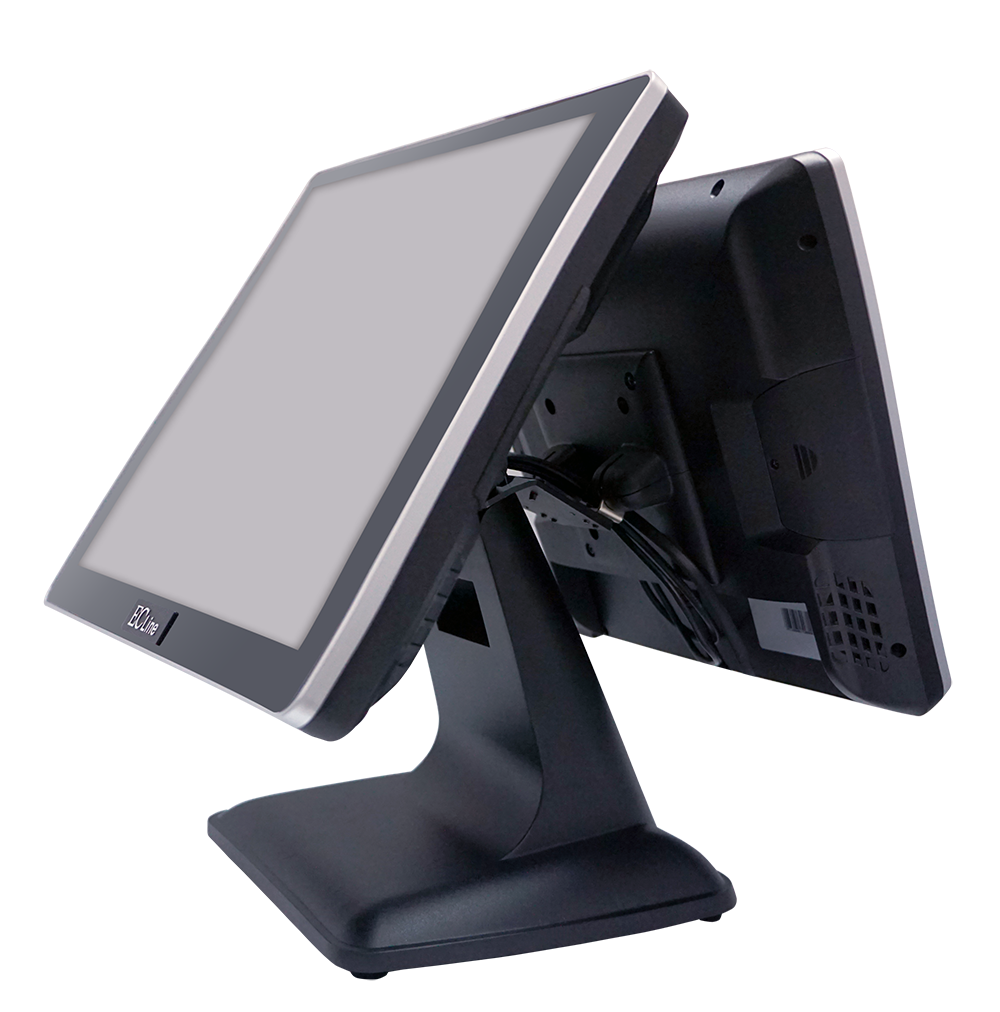

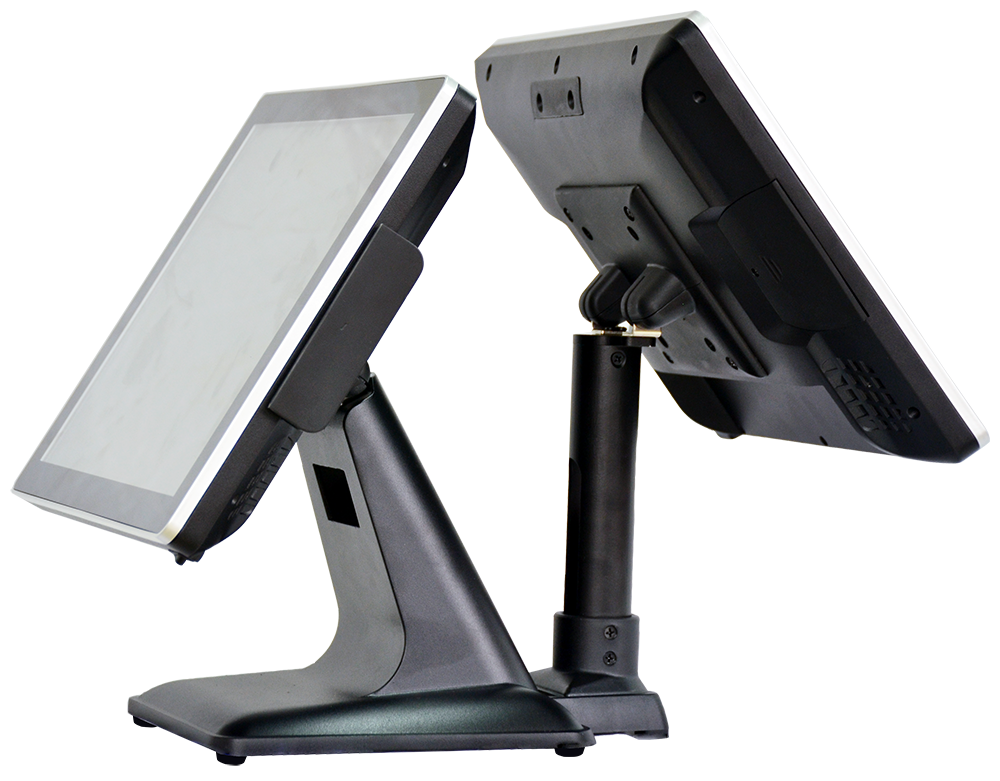

MSR / VFD / 10.1" / 15” Second display supported
• Colorful plastic cover to lighten business identification
• Hidden cable management for space management
| |
Model Name |
EC-VP-1100 (J6412) |
EC-VP-1100 (i3/i5) |
EC-VP-1100 (J1900) |
| System |
CPU |
Intel® J6412 Quad Core |
Intel® Core i3-1115G4 up to 4.10G Dual-Core
Intel® Core i5-1135G7 up to 4.20G Quad-Core |
Intel® Celeron® Processor J1900 2.4GHz |
| |
Memory |
DDRIV-2666/2933/3200 16GB (up to 32GB) |
DDRIV-2666/2933/3200 4GB (up to 32GB) |
DDRIII-1600 4GB (up to 8GB) |
| |
Storage |
128 / 256GB SSD or 500GB SATA Hard Disk |
128 / 256GB SSD or 500GB SATA Hard Disk |
128 / 256GB SSD or 500GB SATA Hard Disk |
| |
OS Support |
Windows 10, Windows 10 IOT, Windows 11, Linux (ubuntu) |
Windows 10, Windows 10 IOT, Windows 11, Linux (ubuntu) |
Windows 7, Windows 8.1, Windows Embedded 8.1 Industry,
Windows 10, Windows 10 IOT, POS Ready 7, Linux (ubuntu) |
| |
|
|
|
|
| LED Panel |
Display Size |
15 Inches |
15 Inches |
15 Inches |
| |
Resolution |
1024 x 768 ( 4 : 3) |
1024 x 768 ( 4 : 3) |
1024 x 768 ( 4 : 3) |
| |
Brightness |
350cd/m² |
350cd/m² |
350cd/m² |
| |
Backlight Type |
LED |
LED |
LED |
| |
Contrast Ratio |
600:1 |
600:1 |
600:1 |
| |
Response Time |
10ms |
10ms |
10ms |
| |
Viewing Angle
(Up/ Down/ Left/ Right) |
80°/80°/70°/70° |
80°/80°/70°/70° |
80°/80°/70°/70° |
| |
Video Interface |
EDP |
EDP |
EDP |
| |
Touch |
10-point Projected Capacitive Touch |
10-point Projected Capacitive Touch |
10-point Projected Capacitive Touch |
| |
|
|
|
|
| Interface |
DC 12V IN |
x 1 |
x 1 |
x 1 |
| |
DC 12V OUT |
x 1 |
x 1 |
x 1 |
| |
HDMI |
x 1 |
x 1 |
/ |
| |
USB2.0 |
x 2 |
x 2 |
x 5 |
| |
USB3.0 |
x 4 |
x 4 |
x 1 |
| |
RS232 |
x 2 |
x 3 |
/ |
| |
CASH DRAWER(RJ11) |
/ |
/ |
x 1 |
| |
VGA |
x 1 |
x 1 |
x 1 |
| |
COM (DB9) |
/ |
/ |
x 2 |
| |
|
|
|
|
| Physical Specifications |
Housing Material |
Aluminum |
Aluminum |
Aluminum |
| |
VESA Mounting |
75 x 75 (mm) & 100 x 100 (mm) |
75 x 75 (mm) & 100 x 100 (mm) |
75 x 75 (mm) & 100 x 100 (mm) |
| |
Dimensions (W x D x H) |
350 × 220 × 340 (mm) |
350 × 220 × 340 (mm) |
350 × 220 × 340 (mm) |
| |
Packing Dimension (W x D x H) |
440 x 310 x 413 mm |
440 x 310 x 413 mm |
440 x 310 x 413 mm |
| |
Net Weight |
4.9KG |
4.9KG |
4.9KG |
| |
Gross weight |
6.8KG |
6.8KG |
6.8KG |
| |
Shock / Drop |
75cm with packaging |
75cm with packaging |
75cm with packaging |
| |
|
|
|
|
| Power |
Consumption |
35W（MAX） |
35W（MAX） |
35W（MAX） |
| |
Power Input |
AC 100-240V |
AC 100-240V |
AC 100-240V |
| |
Power Output |
DC 12V/5A |
DC 12V/5A |
DC 12V/5A |
| |
|
|
|
|
| Environmental Conditions |
Operating Temperature |
-10˚C to 50˚C |
-10˚C to 50˚C |
-10˚C to 50˚C |
| |
Storage Temperature |
-20℃ to 60℃ |
-20℃ to 60℃ |
-20℃ to 60℃ |
| |
Humidity |
10% to 85% |
10% to 85% |
10% to 85% |
| |
|
|
|
|
| Accessories |
Safety |
FCC / CE / RoHS |
FCC / CE / RoHS |
FCC / CE / RoHS |
| |
VFD |
2-line VFD |
2-line VFD |
2-line VFD |
| |
Second Display |
Support |
Support |
Support |
| |
Wireless |
Support |
Support |
Support |
| |
iButton |
Support |
Support |
Support |
| |
iButton+MSR |
Support |
Support |
Support |
| |
ISO Trick |
3 Tracks Magnetic Reader |
3 Tracks Magnetic Reader |
3 Tracks Magnetic Reader |
|
