• Support multi media formats decode & play

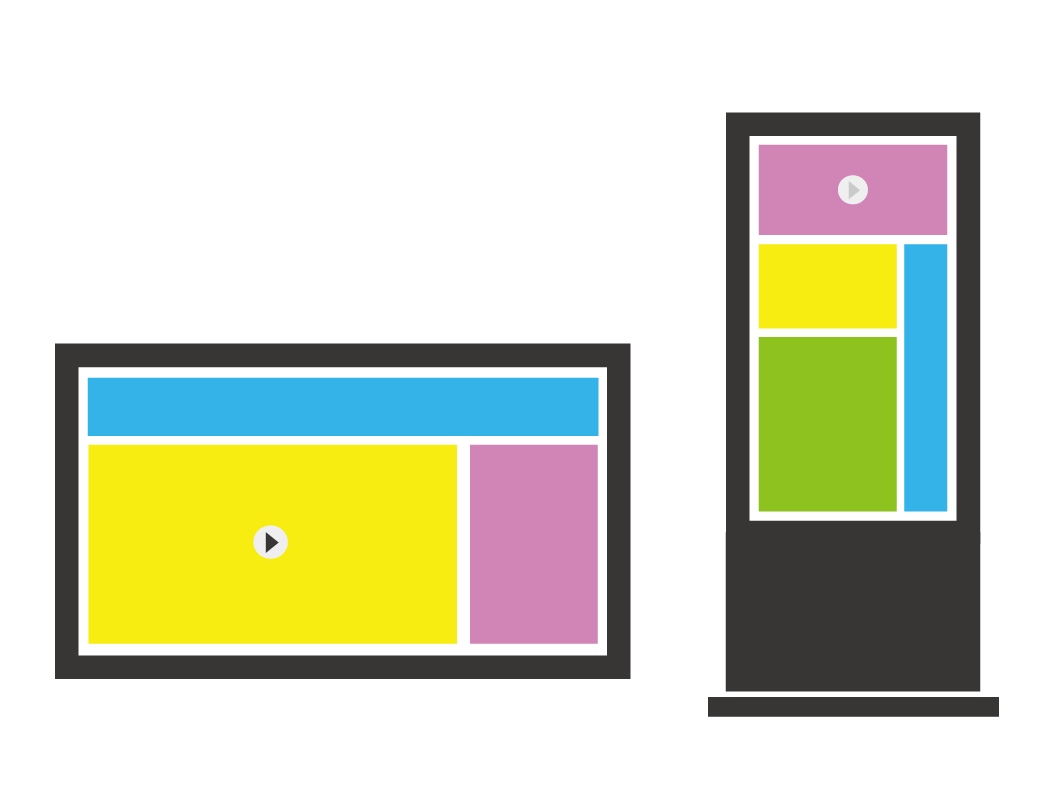

• Support Split area

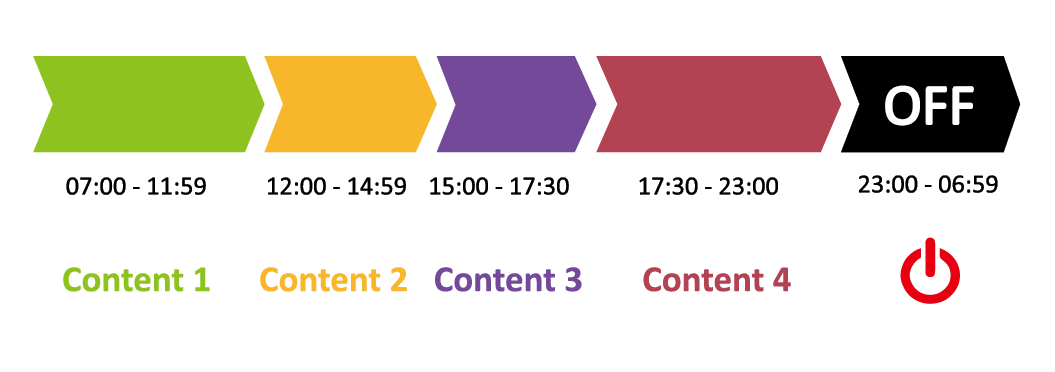

• Real time modification
| MAIN | |
| CPU | Quad-core ARM Cortex A17 （Up to 1.8GHz） |
| GPU | ARM Mail-764 |
| RAM | DDR3 2GB |
| Storage | EMMC 8GB |
| OS | Android OS |

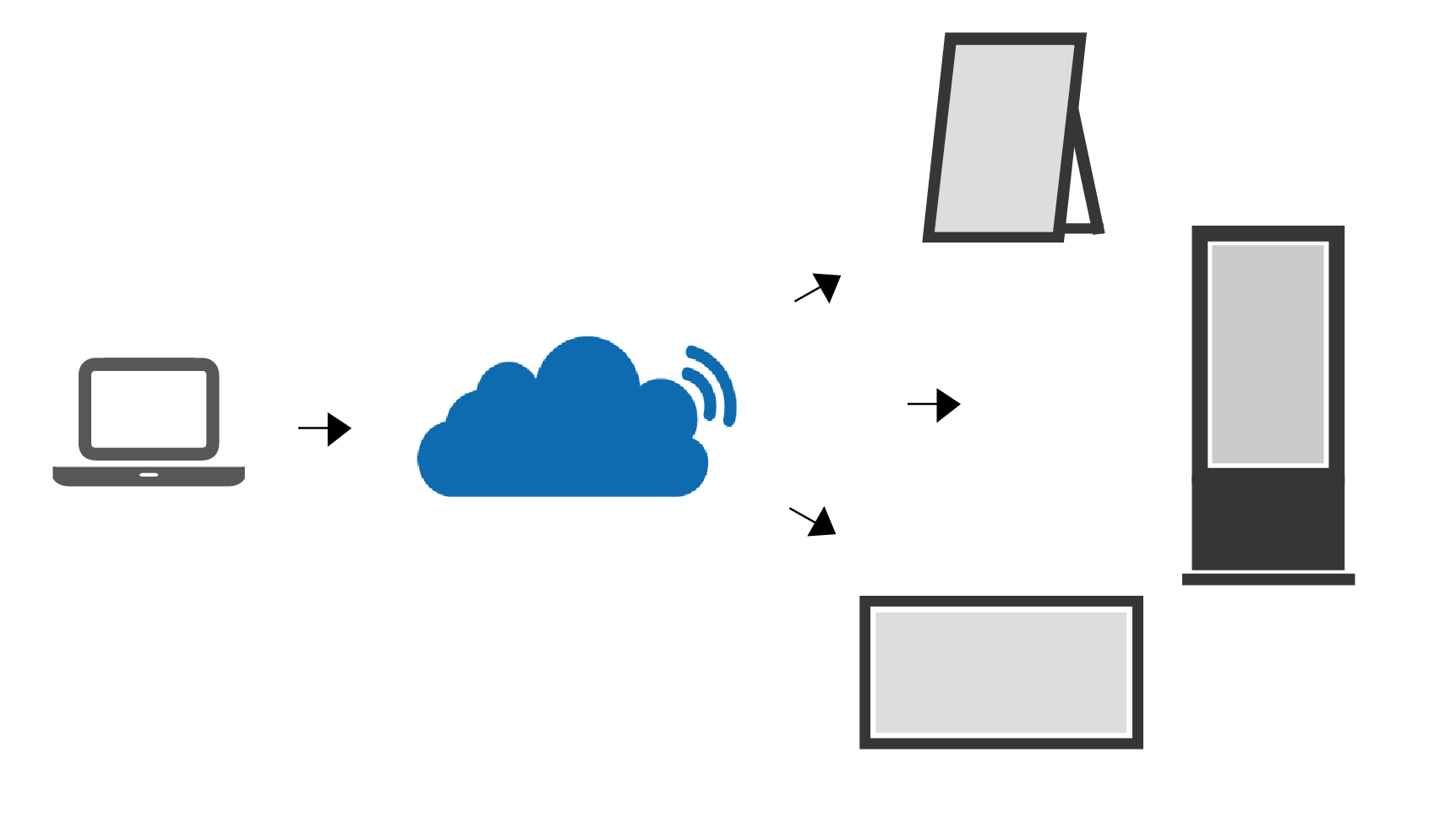

| Network | Wireless / Lan |
| Feature | Fanless |
| Media | MPEG1, MPEG2, MPEG4, H.264, H.265, WMV, MKV, TS, flv, MP3, JPG, JPEG, BMP, PNG, GIF, etc. |

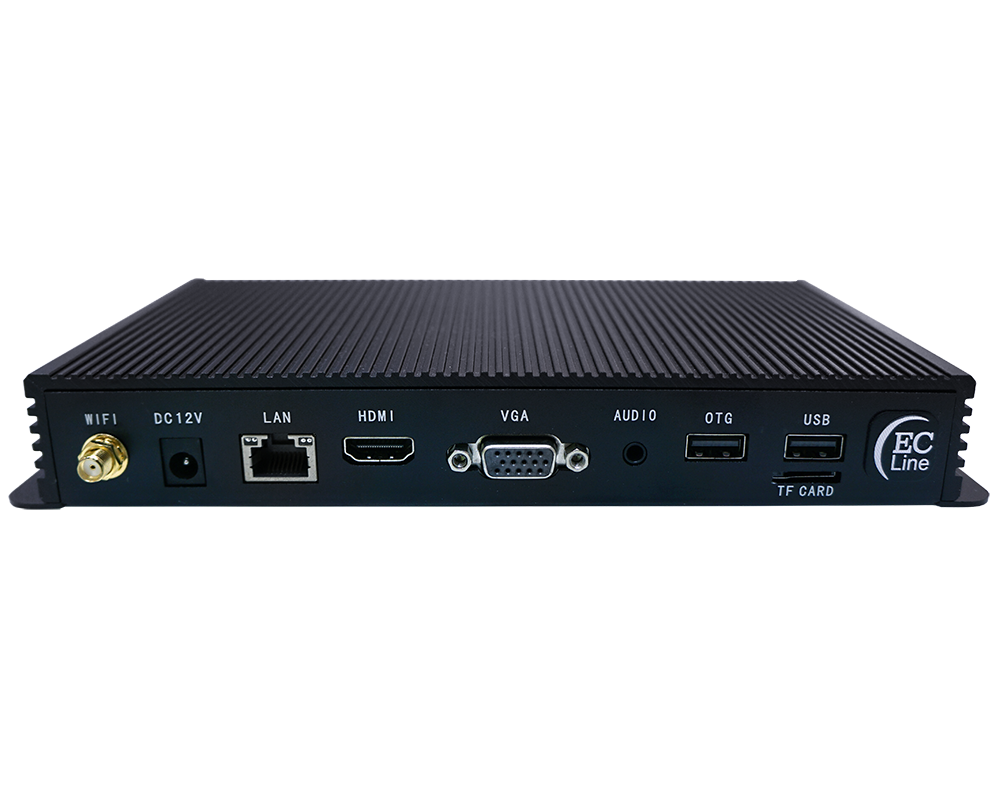

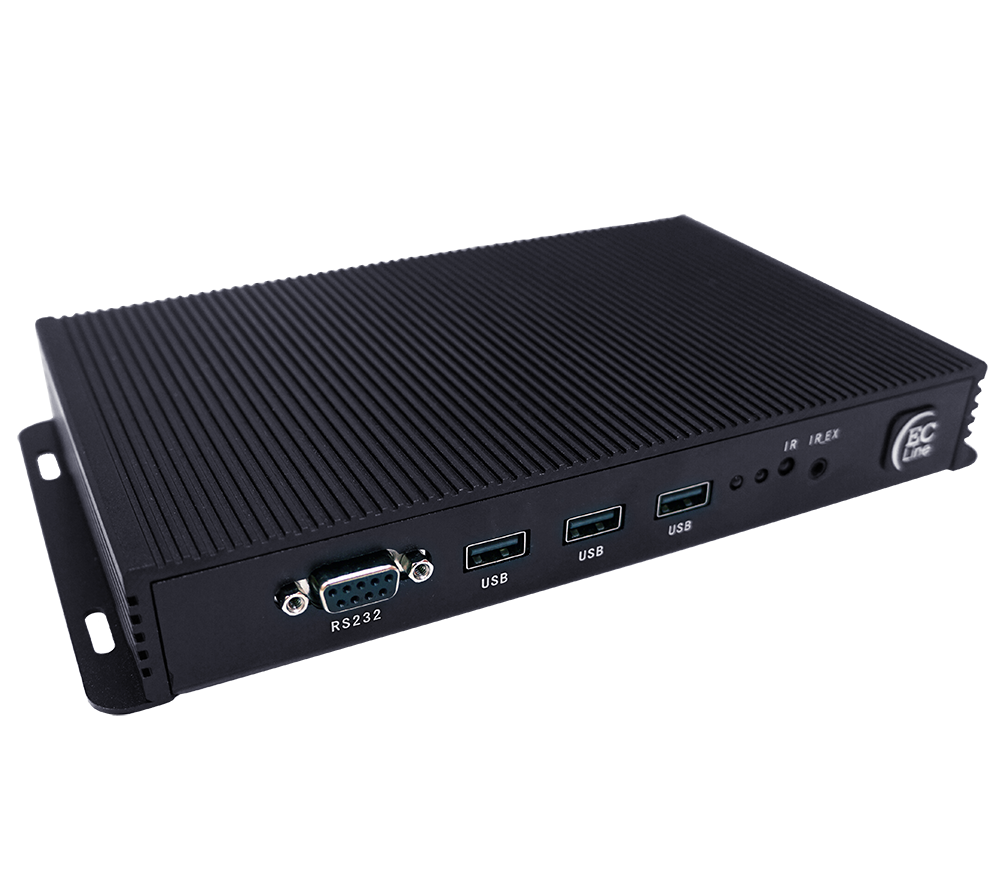

| INTERFACE | |
| I/O Interface | 4 × USB |
| 1 × OTG | |
| 1 × RS232 | |
| 1 × IR_EX | |
| 1 × TF Card | |
| 1 × Audio | |
| 1 × VGA | |
| 1 × HDMI | |
| 1 × LAN | |
| PHYSICAL SPECIFICATIONS | |
| Dimension (mm) | 230 W × 130 D × 30 H |
| Net weight (G) | 615 |
| POWER | |
| Power Supply | DV 12V |
| ENVIRONMENTAL CONDITIONS | |
| Operating temperature | 0℃~40℃ |
| Storage temperature | -40℃~70℃ |
