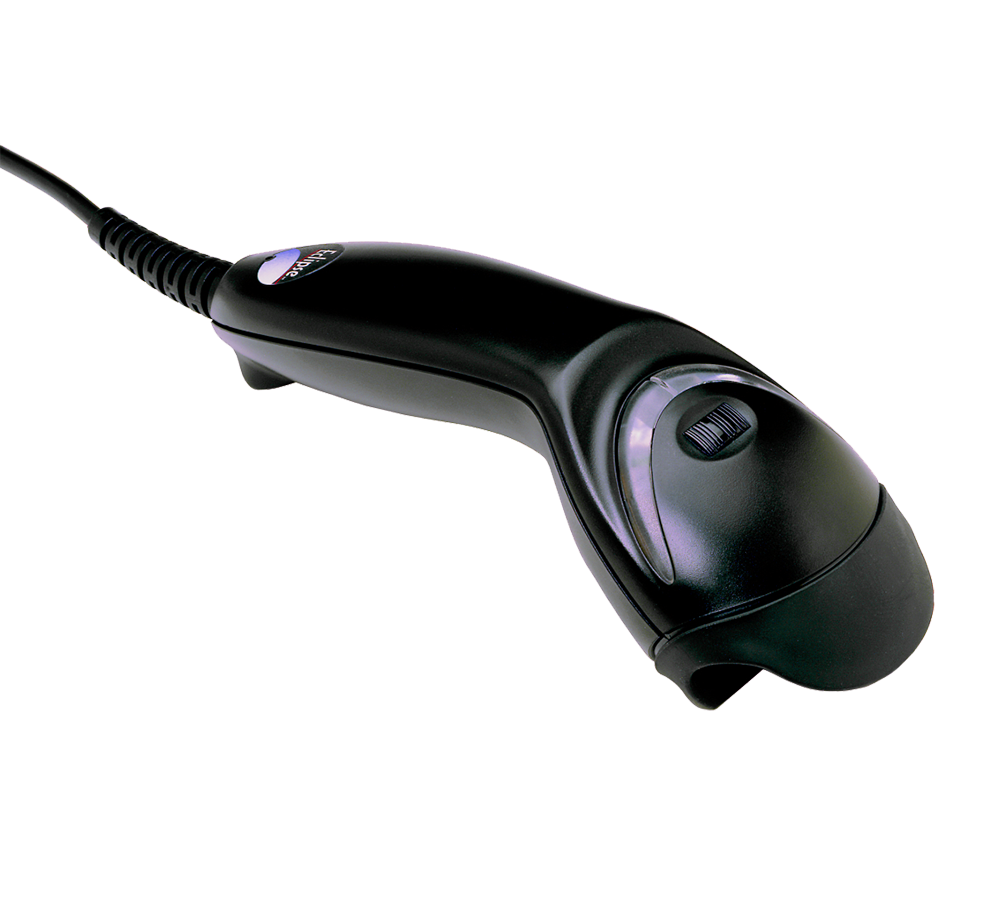

• Economic bar code scanner
• Convenient and reliable
• Minimize human mistake
• Sensitive to high density bar code
| Dimensions (L x W x H) | 169 mm x 63 mm x 51 mm |
| 6.7 in x 2.5 in x 2.0 in | |
| Weight | 100 g (3.5 oz) |
| Input Voltage | 5 VDC ± 0.25 V |
| Operating Power | 675 mW (125 mA @ 5 V) |
| Host System Interfaces | USB, RS232, Keyboard Wedge, IBM 468xx (RS485) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Drop | Designed to withstand 1.5 m (5´) drops |
| Environmental Sealing | Sealed to resist airborne particulate contaminants |
| Light Levels | 4842 Lux |
| Scan Pattern | Single scan line |
| Scan Speed | 72 scan lines per second |
| Scan Angle | Horizontal: 50° |
| Print Contrast | 35% minimum reflectance difference |
| Pitch, Skew | 68°, 52° |
| Decode Capability | Reads standard 1D and GS1 DataBar symbologies. |
