•Save space and light
•Three -positions lock maximum cash security
•Anti-scratch surface

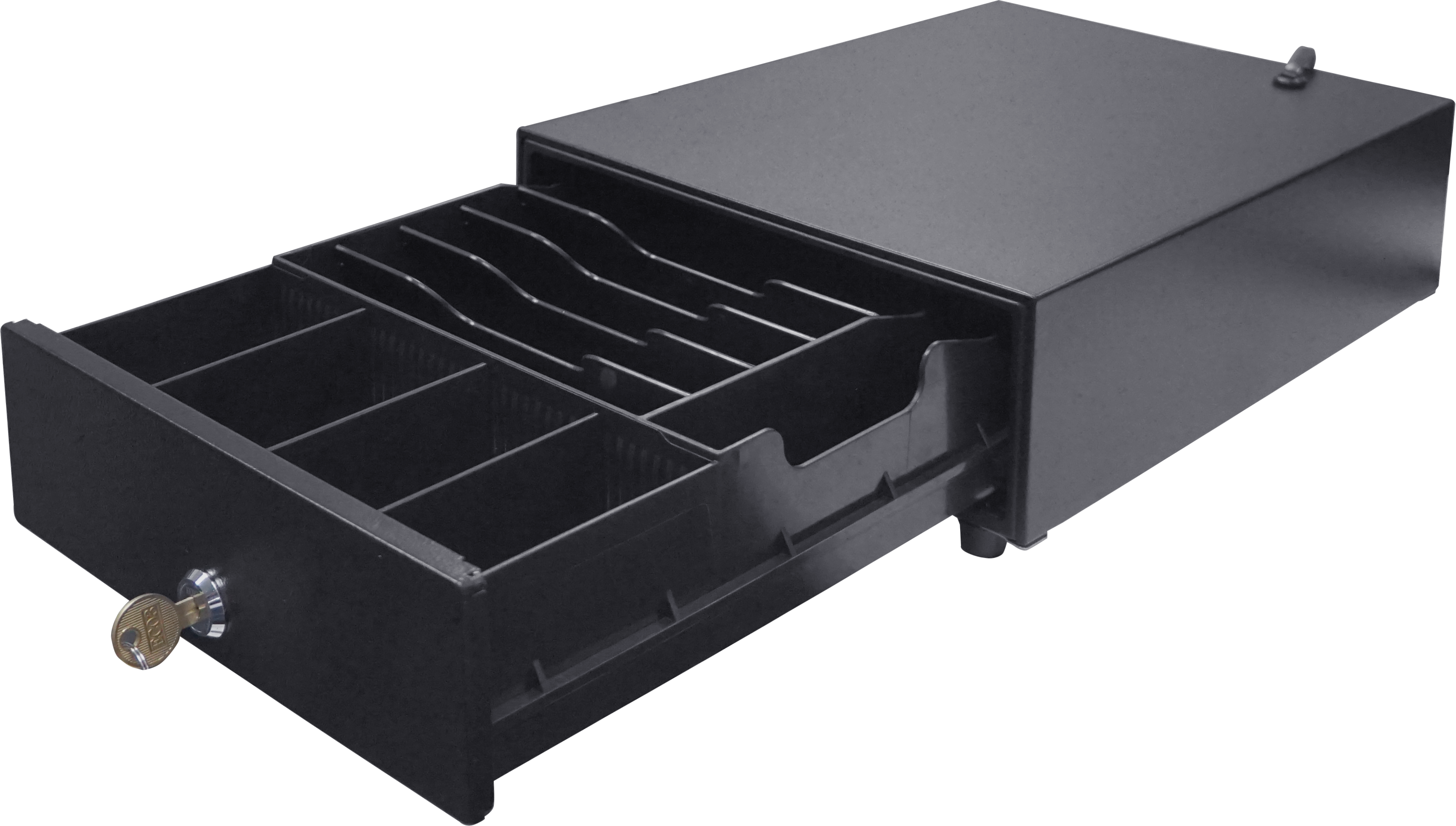

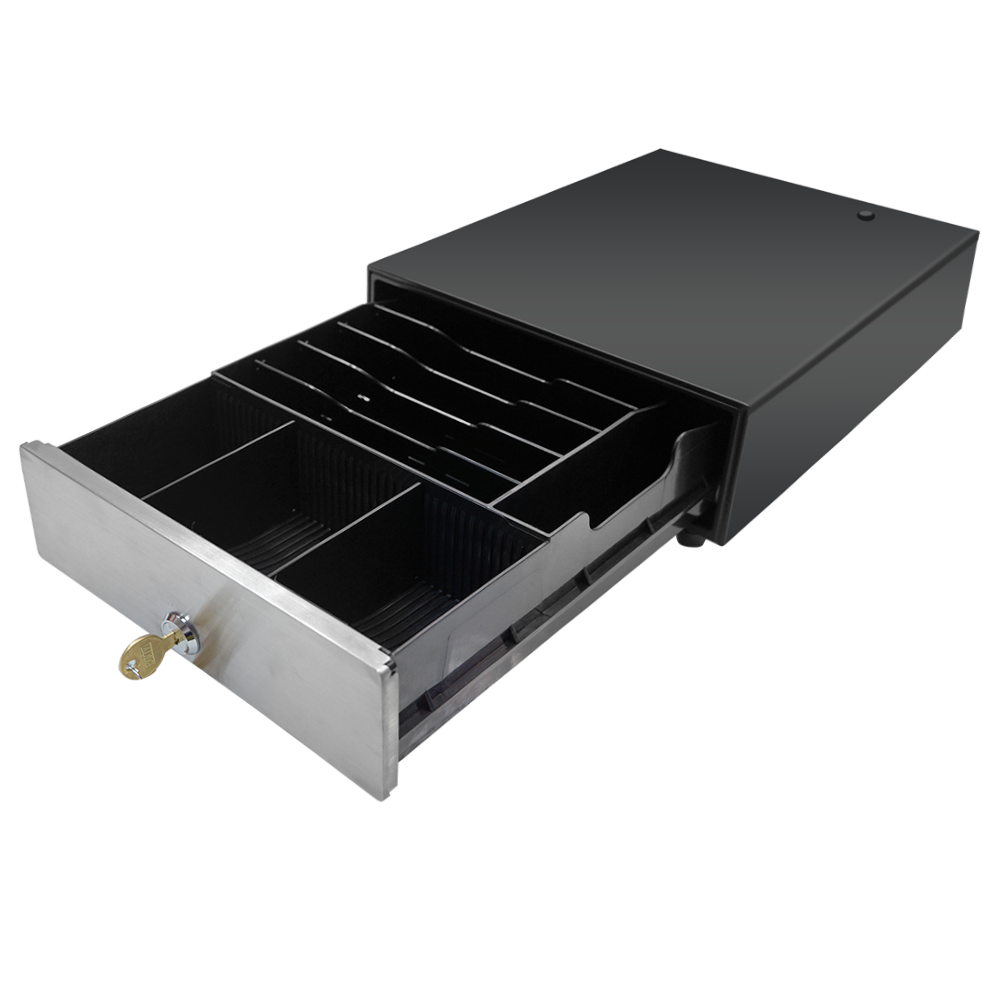

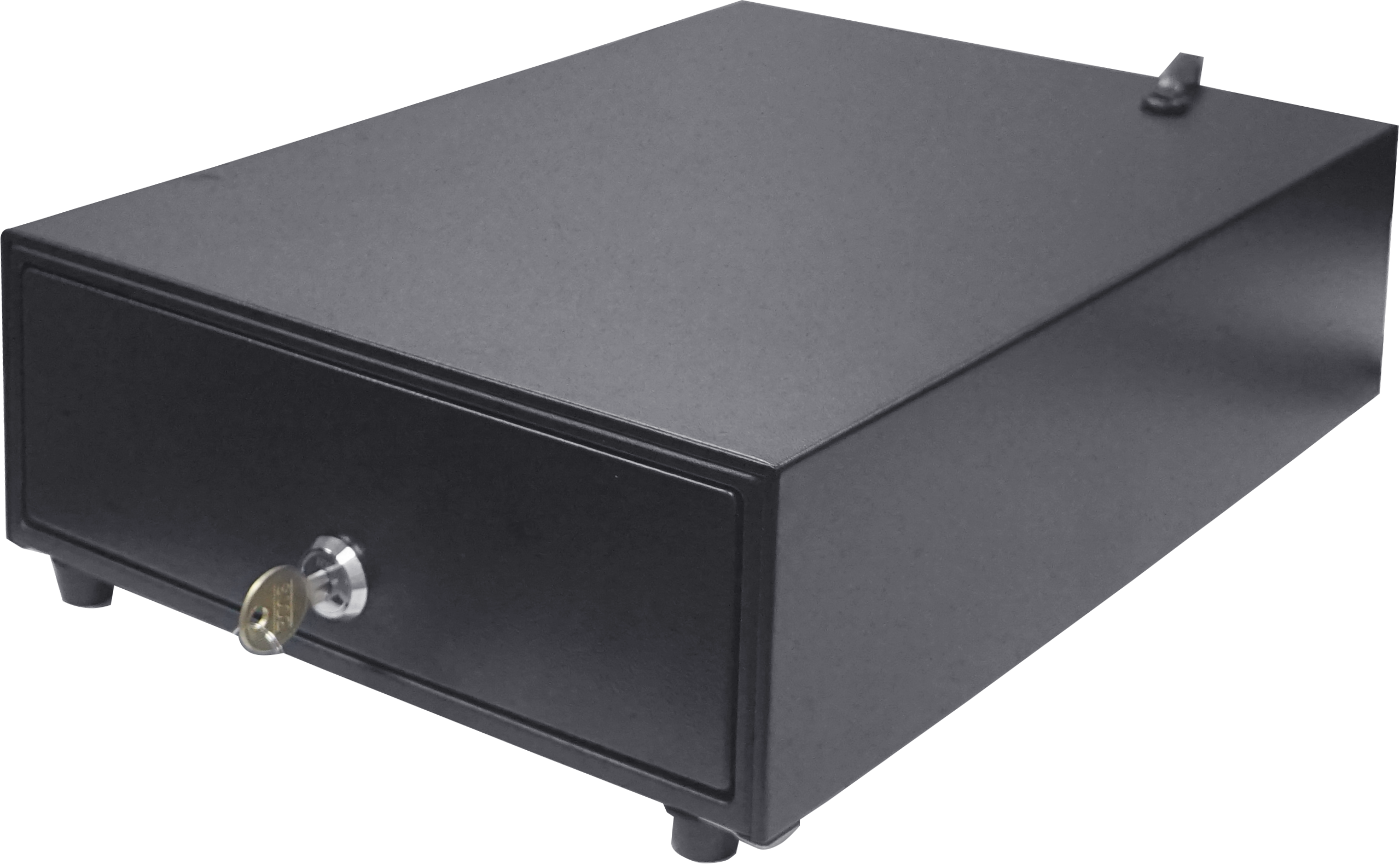

| Drawer Type | Smart Small Cash Drawer with Metal Front Panel |
| Dimensions (inch) | 9.6" W x 12.6" L x 3.5" H (inch, without feet) |
| Dimensions (mm) | 245W X 320D X 90H (mm, without Feet) |
| Packaging (mm) | 380W x 305D x 151H (mm) |
| Net Weight | 2.6 kg (5.7 lbs.) |
| Gro. Weight | 3.0 kg (6.6 lbs.) |
| Color | |
| Panel | Metal |
| Casing | Thick gauge cold rolled steel & SECC |
| Casing Thickness | 0.6 mm |
| Finish | Scratch Resistant Textured Hybrid Powder Coat |
| Roller | Wear-resistant Plastic Rollers |
| Open Push | Rigid Large Spring with Smooth Push |
| Slide | Plastic Slide |
| Material | Shatter-resistant Plastic |
| Currency Layout | 4 Bills, 3-4 Coins; Fixed Coin Tray |
| Media Slot | N/A |
| Cash Till | Global Till: US ; Canadian ; Euro I ; Euro II ; UK ; Asian |
| Key Lock | 10 Key Combinations; Three -position Lock: Locked Open/ Closed, Electronically Driven |
| I/O Interface | 5V, 6V, 12V RJ9 Interface ; RJ11 / RJ12 Receipt Printer Interface |
| Emergent Release | Optional customized Interface |
| Micro Switch | Micro Switch as option |
| Durability | 500 Thousands |
