• Intel Celeron J1900, Intel Sandy Bridge, Intel IvyBridge CPU
Integrated

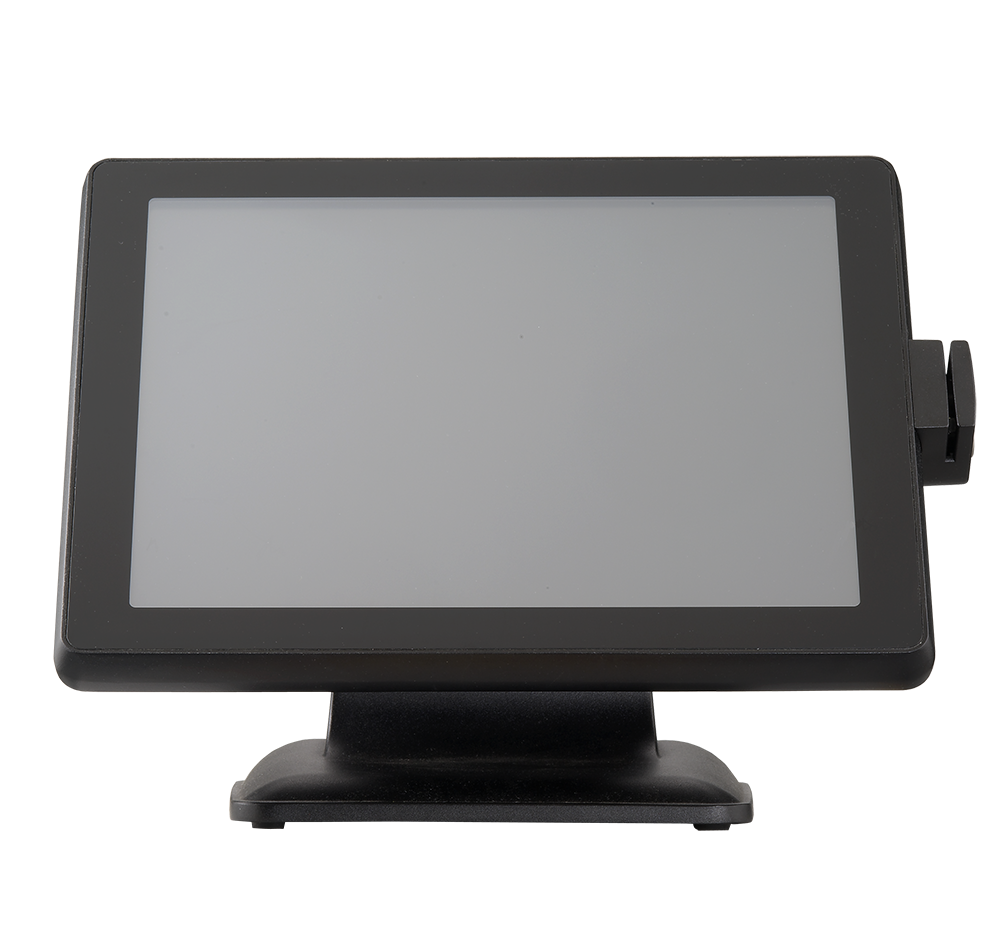

• 15" zero-bezel & projected capacitive technology touchscreen

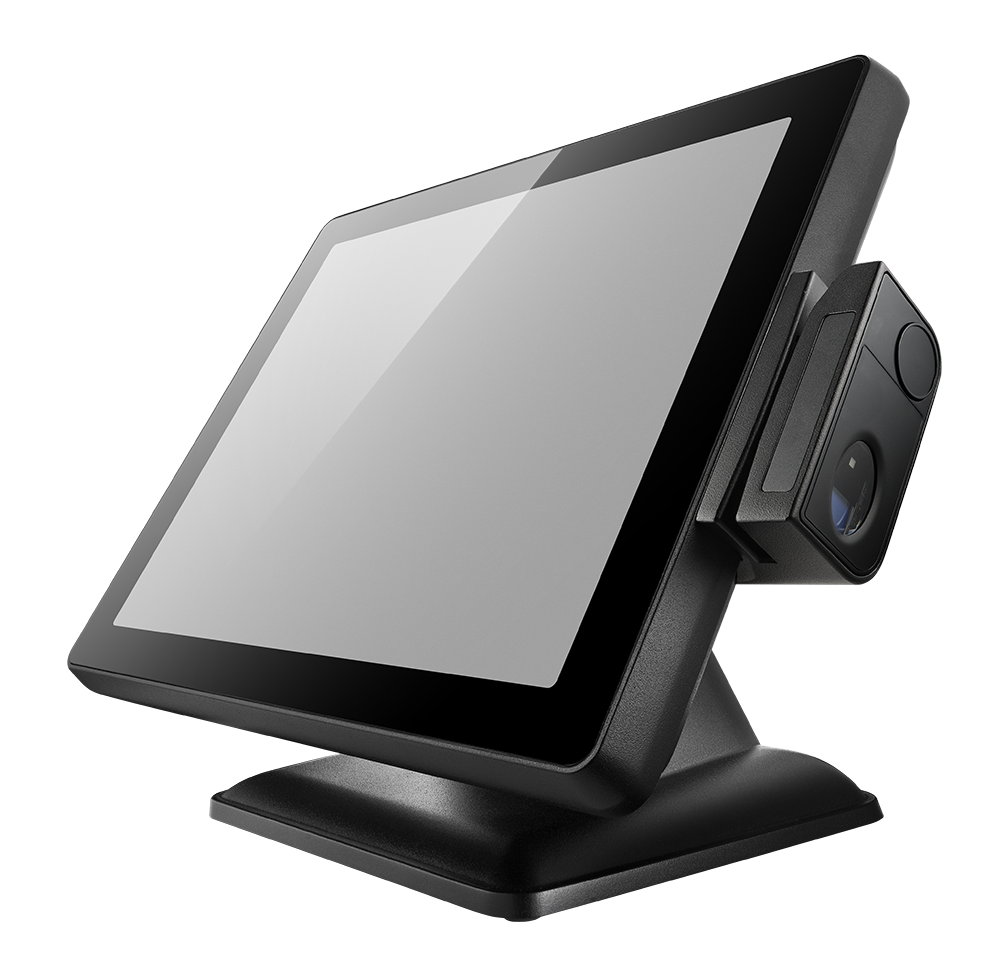

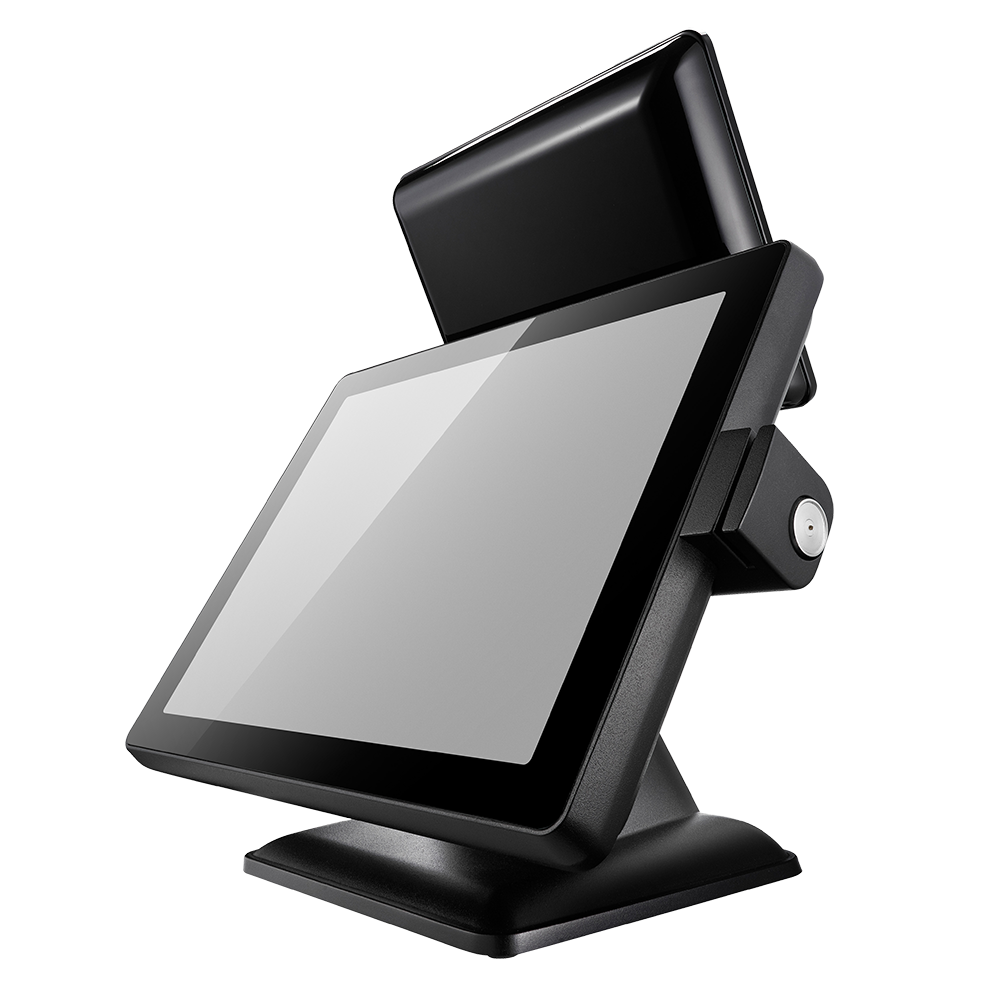

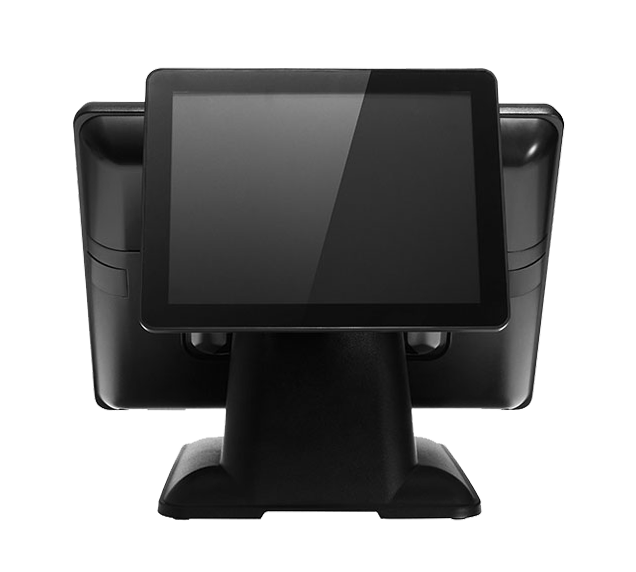

• Flexible architectures for 10.4” LCD second display, MSR,
iButton, Fingerprint, RFID, VFD
• Die-casting aluminum housing with IP66 certification
• Colorful plastic cover to lighten business identification
• Hidden cable management
• Reliable and consistent quality to Point-of-Sales requirement
| VariPOS 715 | VariPOS 815 | |
| CPU | Intel® Celeron J1900 quad-core 2.0GHz with L2 Cache 2MB (Fanless) | Intel® Core i3-3217U 1.8GHz , Cache 3MB |
| Intel® Core i5-2510E 2.5GHz , Cache 3MB | ||
| Intel® Core i3-2330E 2.2GHz , Cache 3MB | ||
| Intel® Celeron B810 1.6GHz , Cache 2MB | ||
| Chipset | CPU Integrated | Ivy Bridge - HM76 |
| Sandy Bridge-Intel® PCH HM65 | ||
| System Memory | 1 x DDR3L SO-DIMM, up to 8GB | 1 x SO-DIMM DDRIII 1600MHz, up to 8GB |
| LCD Size | 15" TFT LCD(LED backlight) | |
| Brightness | 350nits (LED Backlight) | |
| Resolution | 1024 x 768 | |
| Touch Screen | True Flat Projected Capacitive Technology / True Flat 5-Wire Resistive | |
| HDD/SSD | 1 x SATA (2.5'') HDD or SSD | |
| DC Input | 1 x Mini Din 4P (DC 19V only) | Ivy Bridge- 1 x Mini Din 4P (DC 19V only) |
| Sandy Bridge - 1 x Mini Din 4P (DC 12V only) | ||
| Cash Drawer | 1 x RJ-11, 12V or 24V (default) | Ivy Bridge- 1 x RJ-11 (Power Pin 12V or 24V(default)) |
| Sandy Bridge -1 x RJ-11 (Power Pin 12V(default)) | ||
| Network (LAN) | 1 x Gigabit Ethernet by RJ-45 | |
| USB Port | 4 x USB 2.0 | Ivy Bridge - 4 x USB 2.0, 2 x USB3.0 |
| Sandy Bridge - 4 x USB 2.0 | ||
| Serial Port | 3 x RS-232(RJ48 connector),COM1/2/3 Pin10 | Ivy Bridge - 3 x RS-232(RJ48 connector),COM1/2 Pin10(5V); |
| COM3 Pin10(12V), Power enabled by BIOS setting (default RI) | ||
| w/RI/5V/12V Selectable by BIOS (default is RI) | Sandy Bridge - 4 x RS-232(COM1/2:DB-9, COM3/4:RJ-48) w/ | |
| RI/5V/12V Selectable by BIOS (default is RI) | ||
| Audio port | N/A | Ivy Bridge- N/A ; Sandy Bridge -1 x Line-out ; 1 x Mic-In |
| PS/2 Port | N/A | Ivy Bridge- N/A ; Sandy Bridge -1 x PS/2 connector for Keyboard |
| LPT Port | 1 x DB-25 Printer Port (Standard) | Ivy Bridge- 1 x DB-25 Printer por |
| Sandy Bridge -1 x DB-25 Printer port (Optional) | ||
| VGA Port | 1 x DB-15 VGA Port, power enabled by BIOS setting (default: disabled) | Ivy Bridge- 1 x DB-15 VGA port, Power enabled by BIOS setting(default disable); |
| Sandy Bridge -1 x DB-15 VGA port (optional) | ||
| Bus Expansion | 1 x Mini-PCI-E Slot | |
| Power Switch | 1 x power on / off switch button | |
| Speaker | HD Audio, 2W Speaker x 2 | |
| OS Support | Windows 8, Windows 7, POSready 7 | Ivy Bridge- Windows 8, Windows 7, POSready 7 |
| Sandy Bridge-Windows 7, POSready 7 | ||
| Power Adapter | External adapter, DC Model:65 Watts, Voltage:+19VDC 3.42 Amax | Ivy Bridge- External adapter, DC Model:65 Watts, |
| oltage:+19VDC 3.42 Amax | ||
| Sandy Bridge-External adapter, DC Model:120 Watts, | ||
| Voltage:+12VDC 10 Amax | ||
| Certifications | CE, FCC, LVD, RoHS | |
| Protection | IP 66 on front panel | |
| VESA Mount | 100mm x 100mm VESA | |
| Material | Main Unit: Die-Cast Aluminum ; I/O Cover: Plastic | |
| Color | Main Unit: White / Black / Grey | |
| Dimension ( Wx H x D ) | 370 x 300 x 236 | |
| Weight | 7Kg | |
| Operating Condition | 0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing | |
| Storage Condition | -20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing | |

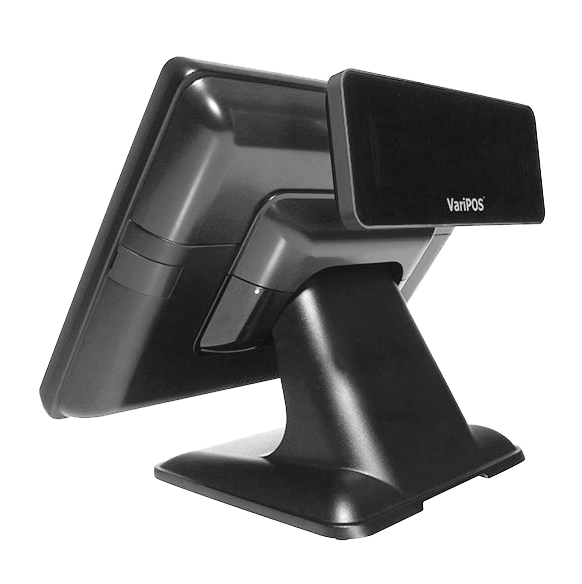

| VFD/LCM | VFD: 2 x 20 attached | |
