High performance Intel Celeron J6412 CPU
10, 12,15 inch LCD Display
Officailly support Win-11
Metal enclosure, sealed design
Sealed Cables Housing
Sealed Speaker
With Capacitive Touch (Optional Resistive Touch)
Complied with IP65
| LED Panel | |||
| Model Name | VP-1100EL-WR | KT-10EL-WR | |

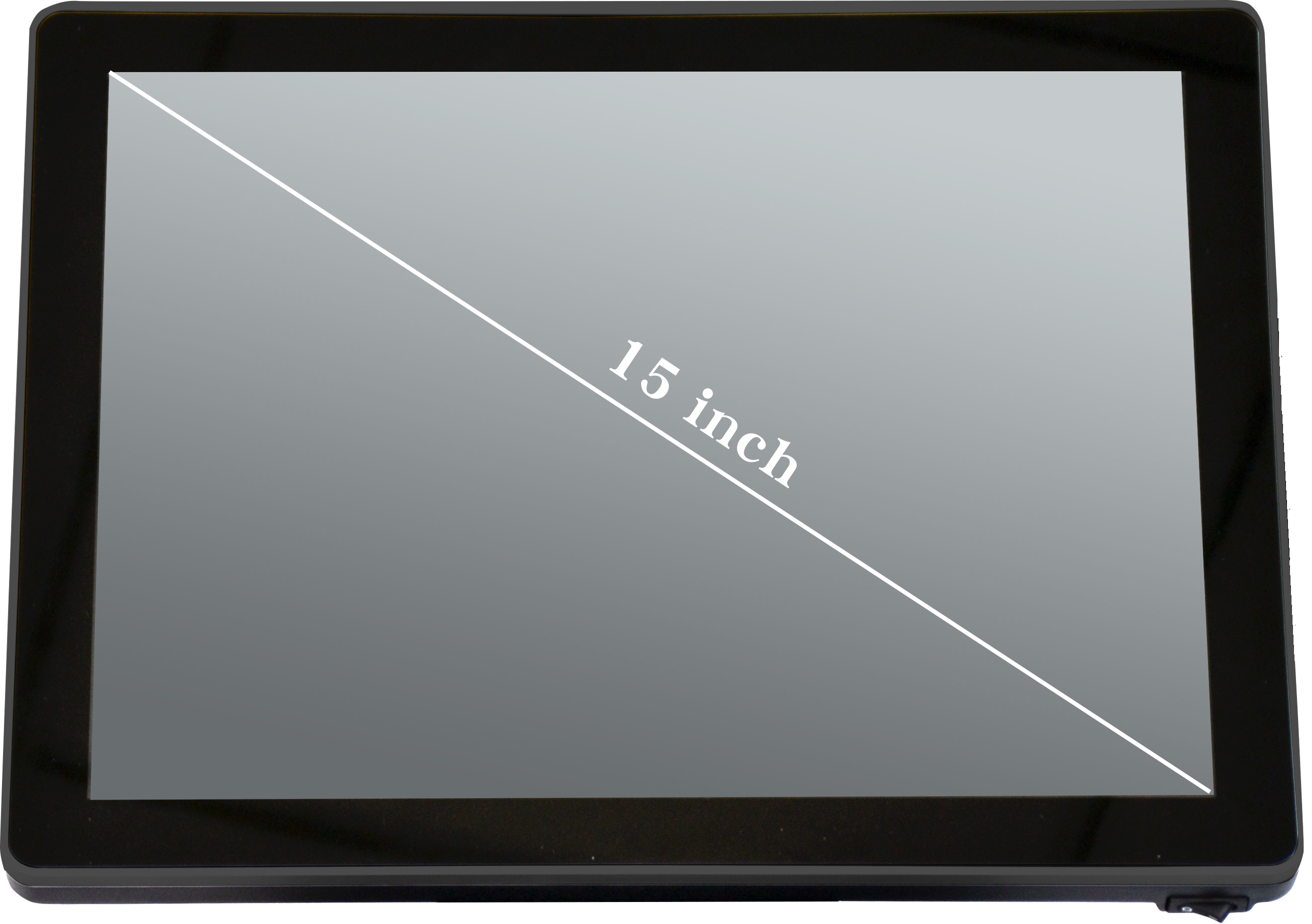

| Display Size | 15 Inch | 12 Inch | 10 Inch |
| Display Mode | 4:03 | 4:03 | 4:03 |
| Display Resolution | 1024 x 768 XGA | 1024 x 768 XGA | 1024 x 768 XGA |
| Backlight Type | LED | LED | LED |
| Brightness | 350cd/m² | 350cd/m² | 350cd/m² |
| Response Time | 10ms | 10ms | 10ms |
| Contrast Ratio | 600:01:00 | 600:01:00 | 600:01:00 |
| Touch | Capacitive Touch with E-Galaxy | Capacitive Touch with E-Galaxy | Capacitive Touch with E-Galaxy |
| "Viewing Angle | 80°/80°/70°/70° | 80°/80°/70°/70° | 80°/80°/70°/70° |
| (Up/ Down/ Left/ Right)" | |||
| International Protection | |||
| IP Rating | IP65 | IP65 | IP65 |
| System | |||
| Operating System | Windows 10, Windows 10 IOT, Windows 11 | Windows 10, Windows 10 IOT, Windows 11 | Windows 10, Windows 10 IOT, Windows 11 |
| Processor | Intel® Celeron® Processor J6412 | Intel® Celeron® Processor J6412 | Intel® Celeron® Processor J6412 |
| Processor Speed | 2.00 GHz, up to 2.60GHz | 2.00 GHz, up to 2.60GHz | 2.00 GHz, up to 2.60GHz |
| Memory | DDR4-2666/2933/3200MHz, 8GB | DDR4-2666/2933/3200MHz, 8GB | DDR4-2666/2933/3200MHz, 8GB |
| Storage | 128 SSD, up to 256GB SSD | 128 SSD, up to 256GB SSD | 128 SSD, up to 256GB SSD |
| Interface | |||
| Video Interface | EDP/LVDS | EDP/LVDS | EDP/LVDS |
| Standard Model: | |||
| USB2.0 | 2 | 2 | 2 |
| Ethernet | 1 | 1 | 1 |
| DC IN (12V) | 1 | 1 | 1 |
| Customized: | |||
| USB 2.0 | 4 | 4 | 4 |
| RS232 | 2 | 2 | 2 |
| Ethernet | 1 | 1 | 1 |
| DC IN (12V) | 1 | 1 | 1 |
| Power | |||
| Power Input | AC100V!ك240V!A50/60Hz | AC100V!ك240V!A50/60Hz | AC100V!ك240V!A50/60Hz |
| Power Output | DC 12V/5A | DC 12V/5A | DC 12V/5A |
| Consumption | 35W!]MAX!^ | 35W!]MAX!^ | 35W!]MAX!^ |
| Physical Specifications | |||
| Housing Material | Aluminium | Aluminium | Aluminium |
| Dimensions Without Base | 350W x 274H x 48D mm | ||
| Net Weight | 4.9KG | ||
| Gross Weight | 6.8KG | ||
| Environmental Conditions | |||
| Operating Temperature | -10˚C to 50˚C | -10˚C to 50˚C | -10˚C to 50˚C |
| Storage Temperature | -20"J to 60"J | -20"J to 60"J | -20"J to 60"J |
| Humidity | 10% to 85% | 10% to 85% | 10% to 85% |
| Acessories | |||
| Included | Power cord / Standard Wall Mount Kit | Power cord / Standard Wall Mount Kit | Power cord / Standard Wall Mount Kit |
| Safety | FCC/ CE/ RoHS | FCC/ CE/ RoHS | FCC/ CE/ RoHS |
| Optional Peripherals | |||

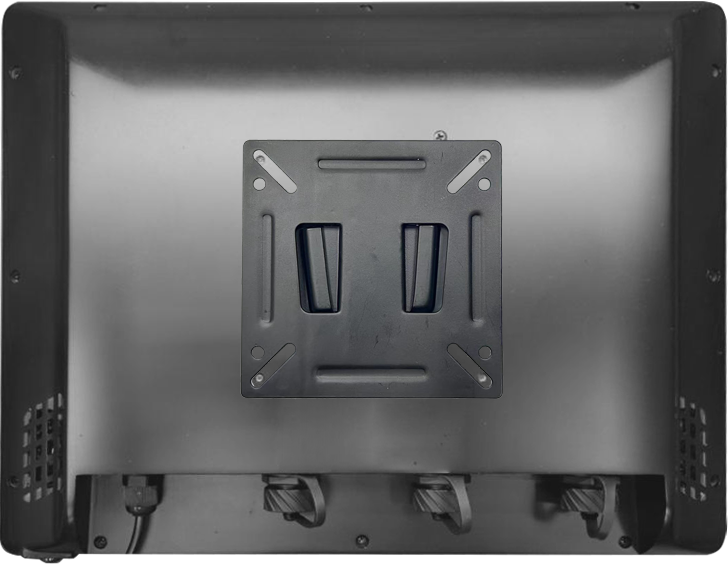

| VESA Mounting | 100 x 100 (mm) | 100 x 100 (mm) | 100 x 100 (mm) |
| Optional Touch | |||
| Touch | Resistive Touch | Resistive Touch | Resistive Touch |
